HAMAMATSU 150 kV MICROFOCUS X-RAY SOURCE L12161-07
FEATURES
Focal spot size: 5 μm (at 4 W)
The focal spot of 5 mm of the sealed type X-ray tube offers sharp and clear X-ray images even at a high magnification.
High power: Maximum output 75 W
External control via RS-232C interface
High speed ramping-up
Ramping-up speeded up to 3 times faster than conventional 150 kV microfocus X-ray source.
No high voltage cable connection required
High voltage power supply is integrated.
APPLICATIONS
Non-destructive inspection
X-ray CT
[Applicable objects]
•Semiconductor device
•Electronic component
•Printed circuit board
•Ceramic
•Plastic component
•Die casting
•Metal component
SPECIFICATIONS
GENERAL
| Parameter | Description/Value | Unit |
| X-ray tube voltage setting range | 0 to 150 | kV |
| X-ray tube current setting range | 0 to 500 | mA |
| X-ray tube voltage operational range 1 | 40 to 150 | kV |
| X-ray tube current operational range 1 | 10 to 500 | mA |
| Maximum output | Small Focus Mode | 10 | W |
| Middle Focus Mode | 30 |
| Large Focus Mode | 75 |
| X-ray focal spot size (Nominal value) | Small Focus Mode | 7 (5 mm at 4 W) | mm |
| Middle Focus Mode | 20 |
| Large Focus Mode | 50 |
| X-ray beam angle 2 | Approx. 43 | degree |
| Focus to object distance (FOD) | Approx. 17 | mm |
| Rated output | Continuous rating | — |
| Communication method | Interface: RS-232C (9-pin D-sub connector) | — |
X-RAY TUBE UNIT
| Parameter | Description/Value | Unit |
| X-ray output window material / Thickness | Beryllium / 0.2 | mm |
| Target naterial | Tungsten | — |
| Operating ambient temperature | +10 to +40 | °C |
| Storage ambient temperature | 0 to +50 | °C |
| Operating and storage humidity | 20 to 85(No condensation) | % |
| Weight | Approx. 13.5 | kg |
X-RAY CONTROL UNIT
| Parameter | Description / Value | Unit |
| Input voltage (AC) | Single phase 100 to 240 (50 Hz / 60 Hz) | V |
| Power consumption | Less than 220 | W |
| Operating ambient temperature | +10 to +40 | °C |
| Storage ambient temperature | 0 to +50 | °C |
| Operating and storage humidity | 20 to 85 (No condensation) | % |
| Weight 3 | Approx. 6 | kg |
REGULATION AND STANDARDS
| Parameter | Description | Unit |
| RoHS directive | EN 50581 Category 9 | — |
| EMC | IEC/EN 61326-1 Emission limits: CISPR 11 Group 1 Class A Immunity requirements: Table 2 | — |
| Safety | IEC/EN 61010-1 | — |
CONTROL SOFTWARE 4
| Parameter | Description | Unit |
| Applicable PC | PC / AT compatible | — |
| Applicable OS | Windows® XP, 7 | — |
| Interface | RS-232C interface | — |

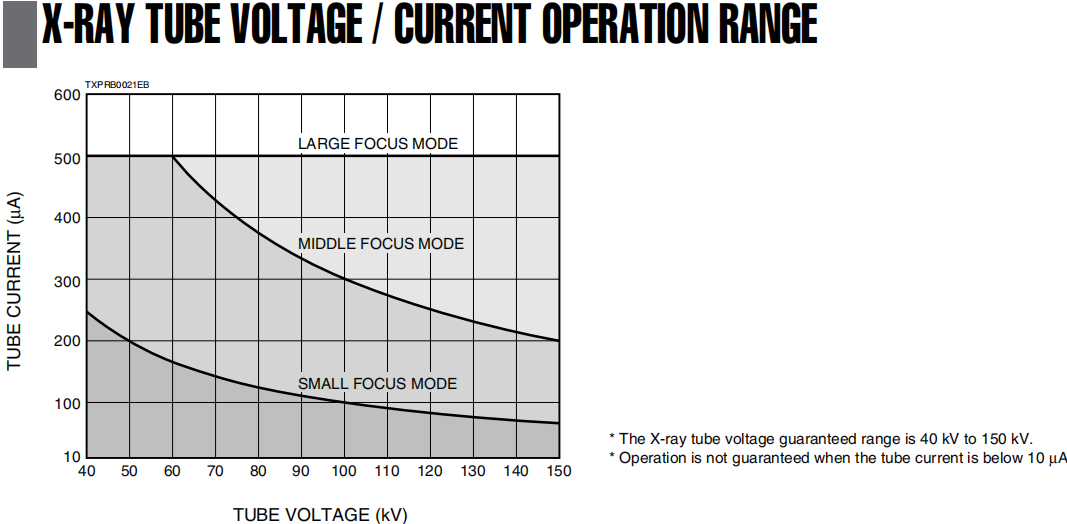

NOTE: 1.See the graph of the X-ray tube voltage / current operation range.
2.Reference value: With 50 % of maximum X-ray emission.
3.This weight includes the accessories of approx. 1.5 kg.
4.The control software is provided as a sample software for the purpose of MFX operation.
The performance of the software is not guaranteed.
